GENERAL PURPOSE SLIDE SWITCHES –SERIES 49000 AND 50000
SWITCHES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
GENERAL PURPOSE SLIDE SWITCHES (continued)

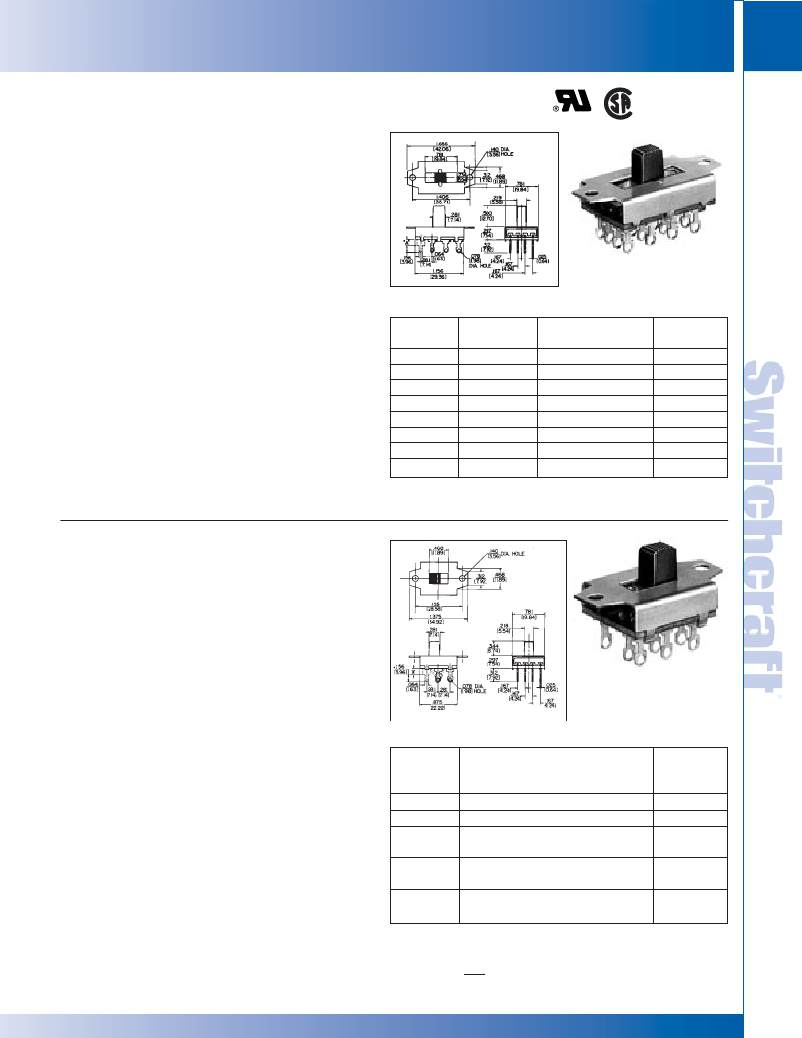

SERIES 49300 - 3 POSITION
Large, heavy duty, three and four pole slide switches. Standard
mounting clearance is .141" (3.58 mm). Series 49300L,
non-shorting contacts; Series 49300LS, shorting contacts.
SPECIFICATIONS
Contact Ratings: 0.5A DC and 3A AC, 125V non-inductive.
Listings: UL recognized (card E40668); CSA certified
(marked) switches available on special order only.
See page 282.
287
Housing: Steel, plated.
Detent Shim: Copper alloy.
Knob: Black thermosetting plastic.
PART NUMBERS
49331L
Terminals and Slider Contacts: Copper alloy, silver-plated.
Insulation: Rigid plastic.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES
1. .5" (12.7 mm) high knobs are standard; other heights
available. See chart on page 283.
2. #4-40 extruded and tapped mounting holes available.
3. Series 49300L switches are CSA marked on special
order only. See page 282.
Part
Number
? 49309L
? 49309LS
? 49329L
? 49329LS
? 49312L
? 49312LS
? 49331L
? 49331LS
UL & CSA
Listing
Yes
No
Yes
No
Yes
No
Yes
No
Description
3-PDT, Locking*
3-PDT, Locking*
3-PTT, Locking
3-PTT, Locking
4-PDT, Locking*
4-PDT, Locking*
4-PTT, Locking
4-PTT, Locking
Schematic
3-VII
3-VII
3 -VI
3 -VI
4-VII
4-VII
4 -VI
4 -VI
* 3rd position is off.
? Special order only; contact Switchcraft.
SERIES 50200 - 2 POSITION
A larger 2 position “double wipe” slide switch offering three
and four poles of switching and locking or momentary action.
Series 50200L and M, non-shorting; Series 50200LS and
MS, with shorting contacts.
SPECIFICATIONS
Contact Ratings: 0.5A DC and 3A AC, 125V non-inductive.
Listings: UL recognized (card E40668); CSA certified (card
28260). Series 50200L switches are CSA marked on special
order only. See page 282.
Housing: Steel, plated.
Detent Shim: Copper alloy.
Knob: Black thermosetting plastic.
Terminals and Slider Contacts: Copper alloy, plated.
Insulation: Rigid plastic.
PART NUMBERS
Part
50209L
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES
1. .344" (8.74 mm) high knobs are standard; other heights
available. See chart on page 283.
2. 50212LF available with flush, screwdriver slotted
actuator and has 4 PDT locking action.
3. Extruded and tapped 4-40 or 6-32 holes available.
4. Series 50200L switches are CSA marked on special
order only. See page 282.
Number
? 50207L
? 50207M
? 50208L
50209L
? 50209LS
? 50209M
? 50209MS
50212L
? 50212LS
Description
3PST - Locking
3PST, N.O. Momentary
4PST, Locking
3PDT, Locking
3PDT, Momentary
4PDT, Locking
Schematic
3-I
3-I
4-I
3-III
3-II
4-III
? Special order only; contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
